Make A Graph

Dataset Title:	Buoy-derived monthly currents in the Indian Ocean by SusTunTech project
Institution:	AZTI (Spain) (Dataset ID: Sustuntech_Buoy_derived_uv_monthly)
Range:	longitude = 56.25 to 65.25°E, latitude = 2.25 to 11.25°N, time = 2010-11-01T00:00:00Z to 2020-12-01T00:00:00Z
Information:	Summary \| License \| FGDC \| ISO 19115 \| Metadata \| Background \| Subset \| Data Access Form \| Files

To work correctly, this web page requires that JavaScript be enabled in your browser. Please:
1) Enable JavaScript in your browser:
      • Chrome: "Settings : Advanced : Privacy and security : Site Settings : JavaScript"
      • Firefox: (it should be always on!)"
      • Opera: "Settings : Websites : JavaScript"
      • Safari: "Safari : Preferences : Security : Enable JavaScript"
2) Reload this web page.

Graph Type:

X Axis:

Y Axis:

Color:

Constraints

Optional
Constraint #1

Optional
Constraint #2

Server-side Functions

distinct()

Hover here to see a list of options. Click on an option to select it.

Graph Settings

Marker Type:

Size:

Color:

Color Bar:

Continuity:

Scale:

Minimum:

Maximum:

N Sections:

Draw land mask:

Y Axis Minimum:

Maximum:

(Please be patient. It may take a while to get the data.)

Optional:
Then set the File Type: (File Type information)
and

or view the URL:
(Documentation / Bypass this form

)

Click on the map to specify a new center point.

Zoom:

Time range:

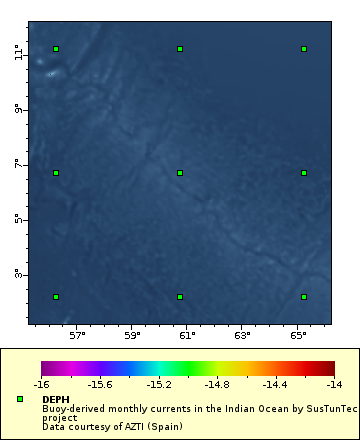

[The graph you specified. Please be patient.]

Things You Can Do With Your Graphs

Well, you can do anything you want with your graphs, of course. But some things you might not have considered are:

Web page authors can embed a graph of the latest data in a web page using HTML <img> tags.
Anyone can use ERDDAPs Slide Sorter to build a personal web page that displays graphs with the latest data (or other images or HTML content), each in its own, draggable slide.

The Dataset Attribute Structure (.das) for this Dataset

Attributes {
 s {
  longitude {
    String _CoordinateAxisType "Lon";
    Float32 _FillValue NaN;
    Float32 actual_range 56.25, 65.25;
    String axis "X";
    Float64 colorBarMaximum 180.0;
    Float64 colorBarMinimum -180.0;
    String ioos_category "Location";
    String long_name "Longitude";
    String standard_name "longitude";
    String units "degrees_east";
  }
  latitude {
    String _CoordinateAxisType "Lat";
    Float32 _FillValue NaN;
    Float32 actual_range 2.25, 11.25;
    String axis "Y";
    Float64 colorBarMaximum 90.0;
    Float64 colorBarMinimum -90.0;
    String ioos_category "Location";
    String long_name "Latitude";
    String standard_name "latitude";
    String units "degrees_north";
  }
  DEPH {
    Float32 _FillValue NaN;
    Float32 actual_range -15.0, -15.0;
    Float64 colorBarMaximum -14.0;
    Float64 colorBarMinimum -16.0;
    String long_name "DEPH";
  }
  time {
    String _CoordinateAxisType "Time";
    Float64 actual_range 1.2885696e+9, 1.6067808e+9;
    String axis "T";
    String calendar "proleptic_gregorian";
    Float64 colorBarMaximum 1.7e+9;
    Float64 colorBarMinimum 1.2e+9;
    String ioos_category "Time";
    String long_name "Time";
    String standard_name "time";
    String time_origin "01-JAN-1970 00:00:00";
    String units "seconds since 1970-01-01T00:00:00Z";
  }
  EWCT {
    Float32 _FillValue NaN;
    Float32 actual_range -1.147263, 1.060001;
    Float64 colorBarMaximum 0.5;
    Float64 colorBarMinimum -0.5;
    String ioos_category "Currents";
    String long_name "West-east current component";
    Float32 missing_value NaN;
    String standard_name "eastward_sea_water_velocity";
    String units "m s-1";
  }
  NSCT {
    Float32 _FillValue NaN;
    Float32 actual_range -0.7925355, 0.7134367;
    Float64 colorBarMaximum 0.5;
    Float64 colorBarMinimum -0.5;
    String ioos_category "Currents";
    String long_name "South-north current component";
    Float32 missing_value NaN;
    String standard_name "northward_sea_water_velocity";
    String units "m s-1";
  }
  EWCS {
    Float32 _FillValue NaN;
    Float32 actual_range 0.02314173, 0.9809336;
    Float64 colorBarMaximum 0.1;
    Float64 colorBarMinimum 0.0;
    String ioos_category "Statistics";
    String long_name "West-east current component standard deviation";
    Float32 missing_value NaN;
    String standard_name "eastward_sea_water_velocity_stantard_deviation";
    String units "m s-1";
  }
  NSCS {
    Float32 _FillValue NaN;
    Float32 actual_range 0.05540035, 0.9094101;
    Float64 colorBarMaximum 0.1;
    Float64 colorBarMinimum 0.0;
    String ioos_category "Statistics";
    String long_name "South-north current component standard deviation";
    Float32 missing_value NaN;
    String standard_name "northward_sea_water_velocity_standard_deviation";
    String units "m s-1";
  }
 }
  NC_GLOBAL {
    String acknowledgement "These data were collected by ships, processed by AZTI and made freely available by Marine Instruments through SusTunTech project and the programs that contribute to it";
    String area "Indian Ocean";
    String cdm_data_type "Point";
    String citation "These data were collected by ships, processed by AZTI and made freely available by Marine Instruments through SusTunTech project and the programs that contribute to it";
    String comment "The velocities are derived from buoy positions and dates: First raw data were quality controlled, then interpolated to obtain trajectory points every 6 hours, and finally velocities were derived from those positions. Given the good agreement with drifter-derived velocities at -15 m, the velocities of this dataset are considered representative of that depth. The final product is a set of monthly mean current velocities in a grid of cells of 4.5 degrees x 4.5 degrees.";
    String contact_email "sustuntech_WP4@azti.es";
    String Conventions "COARDS, CF-1.6, ACDD-1.3";
    String creator_email "sustuntech_WP4@azti.es";
    String creator_name "AZTI";
    String creator_type "institution";
    String creator_url "https://www.azti.es/";
    String data_assembly_center "AZTI";
    String data_language "eng";
    String data_mode "D";
    String data_type "gridded currents";
    String date_update "2020-12-01 00:00";
    String distribution_statement "These data are public and free of charge. User assumes all risk for use of data. User must display citation in any publication or product using data. User must contact PI prior to any commercial use of data";
    String DOI "https://zenodo.org/doi/10.5281/zenodo.8421904";
    Float64 Easternmost_Easting 65.25;
    String featureType "Point";
    String format_version "1.4";
    Float64 geospatial_lat_max 11.25;
    Float64 geospatial_lat_min 2.25;
    String geospatial_lat_units "degrees_north";
    Float64 geospatial_lon_max 65.25;
    Float64 geospatial_lon_min 56.25;
    String geospatial_lon_units "degrees_east";
    String geospatial_vertical_units "m";
    String history
"2010-11-01 00:00 - 2020-12-01 00:00 data collected. 2023-09-22 12:49 netCDF file created using Matlab software
2024-03-05T10:31:52Z (local files)
2024-03-05T10:31:52Z https://erddap.sustuntech.eu:3030/erddap/tabledap/Buoy_derived_uv_monthly.nc?longitude%2Clatitude%2CDEPH%2Ctime%2CEWCT%2CNSCT%2CEWCS%2CNSCS
2024-04-27T15:38:08Z (local files)
2024-04-27T15:38:08Z https://erddap.emodnet-physics.eu/tabledap/Sustuntech_Buoy_derived_uv_monthly.das";
    String id "Buoy_derived_uv_monthly";
    String infoUrl "https://www.sustuntech.eu/communicationmaterials/deliverables/";
    String institution "AZTI (Spain)";
    String institution_edmo_code "1623";
    String institution_references "AZTI";
    String keywords "azti, buoy, buoy-derived, circulation, component, control, current, currents, data, deph, derived, deviation, earth, Earth Science > Oceans > Ocean Circulation > Ocean Currents, east, eastward, eastward_sea_water_velocity, eastward_sea_water_velocity_stantard_deviation, ewcs, ewct, fisheries, indian, latitude, longitude, month, monthly, north, northward, northward_sea_water_velocity, northward_sea_water_velocity_standard_deviation, nscs, nsct, ocean, ocean currents, oceans, project, quality, science, sea, seawater, south, south-north, spain, standard, stantard, statistics, sustuntech, time, velocity, water, west, west-east";
    String keywords_vocabulary "GCMD Science Keywords";
    String last_update "2023-09-22 12:49";
    String license "Data must be used following CC BY-NC-ND 4.0 Creative Commons license (https://creativecommons.org/licenses/by-nc-nd/4.0/deed.en) and only for scientific purposes. No commercial purposes are allowed. Data are not intended for legal use since they may contain inaccuracies. Data provider, nor any of their employees or contractors, makes any warranty and assume any legal liability for the accuracy, completeness, or usefulness, of this information.";
    String metadata_language "eng";
    String naming_authority "Marine Instruments, AZTI";
    String NetCDF_format "netcdf4_classic";
    String NetCDF_version "netCDF-4 classic model";
    Float64 Northernmost_Northing 11.25;
    String publisher_email "sustuntech@globalmarine.es";
    String publisher_name "Marine Instruments";
    String publisher_type "institution";
    String publisher_url "https://www.marineinstruments.es/es/";
    String qc_manual "QC filters were applied based on Baidai et al. (2017, 2022), the Annexe 13 of the RECOLAPE project (Ruiz et al., 2019) and Hansen and Poulain (1996)";
    String references "https://www.sustuntech.eu/, https://www.sustuntech.eu/communicationmaterials/deliverables/";
    String sourceUrl "(local files)";
    Float64 Southernmost_Northing 2.25;
    String standard_name_vocabulary "CF Standard Name Table v70";
    String subsetVariables "DEPH";
    String summary "The velocities are derived from buoy positions and dates: First raw data were quality controlled, then interpolated to obtain trajectory points every 6 hours, and finally velocities were derived from those positions. Given the good agreement with drifter-derived velocities at -15 m, the velocities of this dataset are considered representative of that depth. The final product is a set of monthly mean current velocities in a grid of cells of 4.5 degrees x 4.5 degrees";
    String time_coverage_end "2020-12-01T00:00:00Z";
    String time_coverage_resolution "monthly";
    String time_coverage_start "2010-11-01T00:00:00Z";
    String title "Buoy-derived monthly currents in the Indian Ocean by SusTunTech project";
    String update_interval "void";
    Float64 Westernmost_Easting 56.25;
  }
}

Using tabledap to Request Data and Graphs from Tabular Datasets

tabledap lets you request a data subset, a graph, or a map from a tabular dataset (for example, buoy data), via a specially formed URL. tabledap uses the OPeNDAP (external link)

Data Access Protocol (DAP) (external link)

and its selection constraints (external link)

The URL specifies what you want: the dataset, a description of the graph or the subset of the data, and the file type for the response.

(easy) You can get data by using the dataset's Data Access Form or Subset form. They make the URL for you.
(easy) You can make a graph or map by using the dataset's Make A Graph form. It makes the URL for you.
(not hard) You can bypass the forms and get the data or make a graph or map by generating the URL by hand or with a computer program or script.

Tabledap request URLs must be in the form
https://coastwatch.pfeg.noaa.gov/erddap/tabledap/datasetID.fileType{?query}
For example,
https://coastwatch.pfeg.noaa.gov/erddap/tabledap/pmelTaoDySst.htmlTable?longitude,latitude,time,station,wmo_platform_code,T_25&time>=2015-05-23T12:00:00Z&time<=2015-05-31T12:00:00Z
Thus, the query is often a comma-separated list of desired variable names, followed by a collection of constraints (e.g., variable<value), each preceded by '&' (which is interpreted as "AND").

For details, see the tabledap Documentation.
